Universal Hand Sanitizer Stand (stand only)

Site Location

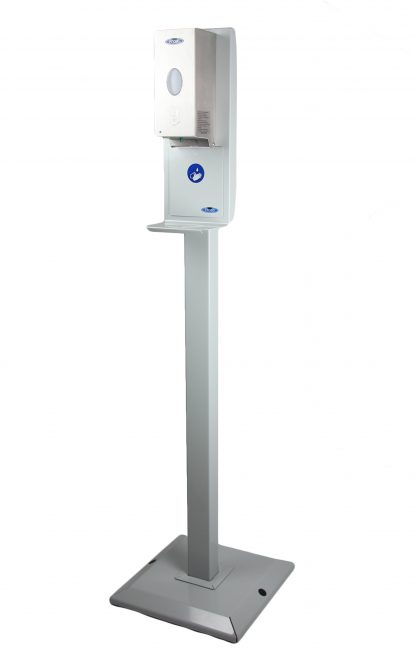

The code 1600 hand sanitizer stand is intended for use with Frost sanitizer dispensers or most competing commercial models. This product is made of heavy duty steel and finished in outdoor quality powder coated grey paint. The product is commonly used in office buildings, reception areas, hotels, airports, universities/schools, health care facilities, retail, and other public areas.

Features

• Modern professional appearance
• Canadian made with heavy gauge steel
• Solid base with feet that allow the unit to be anchored to the ground
• Easy to assemble without use of additional tools
• For use with Frost sanitizer dispensers or most competing brands
• ADA compliant

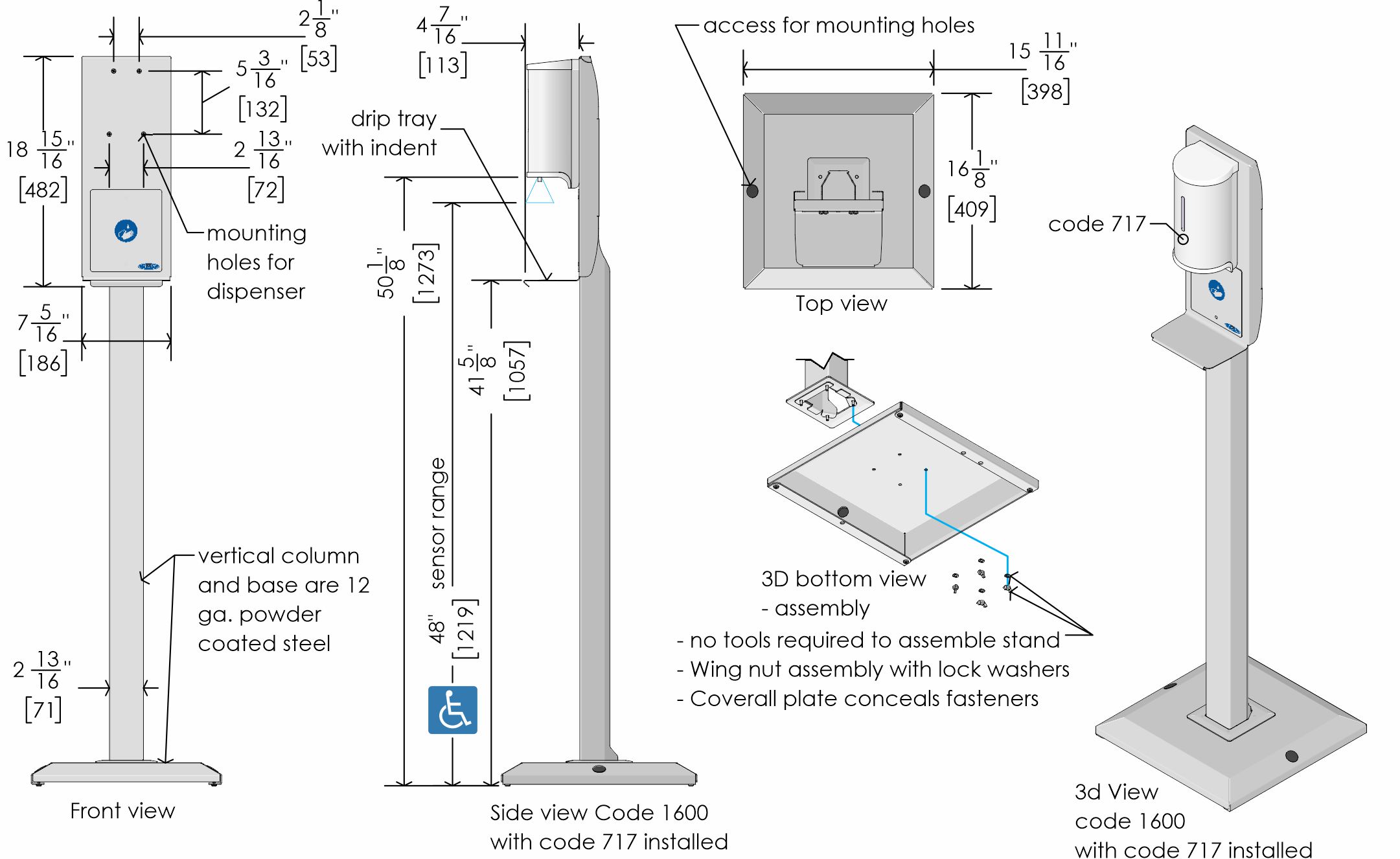

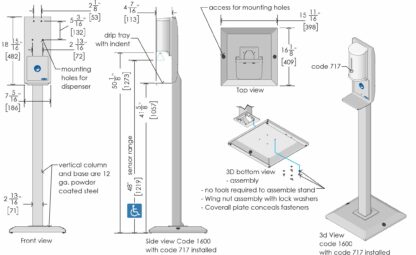

• Characteristics: The stand is designed to be universal, meaning that you can mount various dispensing products to it. You can do so via adhesive pad or by using the mounting holes in the back of the plate (mounting hole locations are listed on the specification page). The stand offers a 12 gauge steel square base, which gives it stability and durability. For added vandalism or theft protection, there are also feet in the base so the unit can be anchored to the ground. The base, post, and plate can be easily assembled without the use of tools. The base also includes nylon feet which minimizes the risk of surface scratches on floors. The plate comes with an attractive pad stamped sanitization logo and integrated drip tray to catch any excess liquid. When a dispenser is mounted the unit is ADA compliant.

Materials

• The base is made from 12 gauge steel. The post and plate are made of heavy gauge steel. The whole unit is finished in a grey outdoor quality powder coated paint.

Product Dimensions

• 39.9cm W x 154.7cm H x 40.9cm D (15.7″ W x 60.9″ H x 16.1″ D)

Product Weight

• 11.2 kg (24.75 lbs)
• Installation/Assembly: No tool assembly required. Use the wing nuts and washers supplied to attach the post to the base. Hide the hardware with the cover plate included. Attach the top plate to the post with wing nuts and washers. Use either a self adhesive dispenser to attach to the top of the plate, or use the mounting holes provided to secure the dispenser. If anchoring the unit: Secure pedestal to ground with appropriate anchoring system for floor material. Use ground plate as a template to locate mounting holes. Drill holes and set anchors as required. The back plate comes with 4 “8-32, ½” long screws” to attach the sanitizer dispenser.

Maintenance

Normal preventative maintenance and cleaning will keep Frost products functioning properly and may extend normal product life. Products should be wiped down with a damp soft cloth periodically. Approved stainless steel cleaner may be used to clean scuffs or fingerprints on stainless surfaces. Do not use harsh detergents or chemical cleaners. For general dirt and blemishes on painted steel or plastic use warm water and mild soap, or a general mild cleaning solution. When using any type of cleaning solution, spray onto a discrete area to test before full usage. After the cleaning agent is applied, wipe off with a clean soft cloth or sponge.

Warranty

If any product or part proves to be defective within 12 months from date of shipment from the factory it will be repaired or replaced without any charge including freight costs when authorized. Costs resulting from the installation or removal of defective products are not covered under this warranty. Discolouration to stainless steel parts resulting from exposure to harsh environmental and / or chemicals are not considered to be defects in workmanship or material and are not covered under warranty.

HSS-TBK
