Push Button Free Feminine Product Dispenser

Site Location

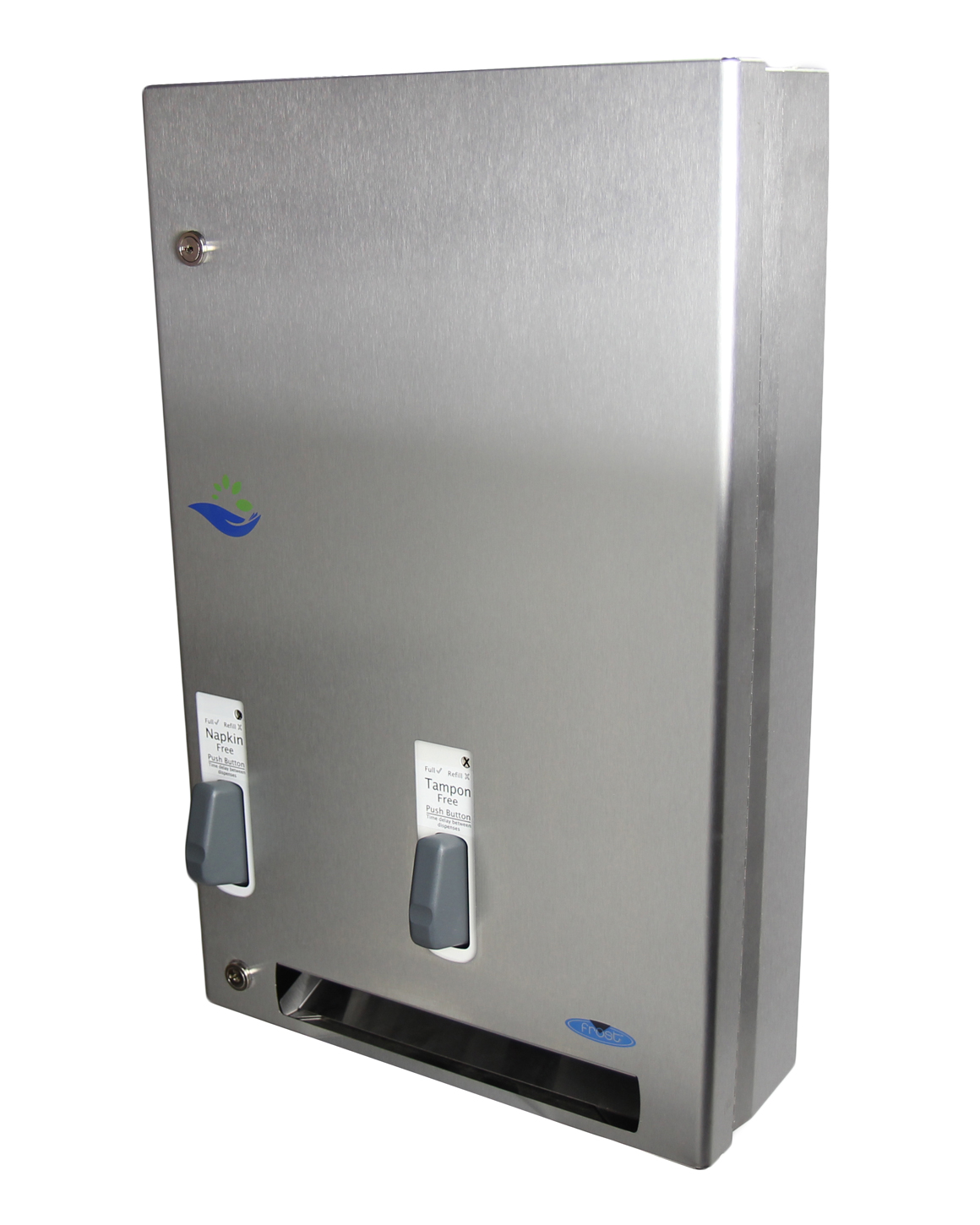

Support ending period poverty with Frost’s 618-3-Free double napkin/tampon dispenser. This product offers free period product dispensing in an easy-to-use push button style. Typically, these products are used in schools, office buildings, recreational facilities, and other commercial properties. The user-friendly functionality and professional appearance of this unit make it a popular choice in areas that require heavy duty, durable dispensers.

Features

• Canadian made in heavy duty 22 gauge stainless steel
• Door hinged with full length stainless steel piano hinges and secured with two tumbler keyed locks, keys provided
• Time delayed free product vending
• Dispenses sanitary napkins and tampons
• Easy to use with less than 3.5lbs of force required
• Clearly visible empty indicator for users and to aid in restocking
• Available with recessed frame to comply with ADA 4” from wall requirement at additional cost
• Comes with English and French Napkin and Tampon Labels

Dispensing

Frost code 618-3-FREE is designed to dispense standard napkins and tampons. To operate this unit simply press either the napkin or tampon button. The buttons retract with less than 3.5lbs of force and offer time delayed dispensing. The delay is approximately 5 seconds until the button can be reactivated. To refill this unit, use the provided keys to open the body and manually insert the desired products in the empty slots. Use the weights provides to secure the product in the slots.

Capacity

• 15 no. 4 napkin (11 no. 6), 22 standard tampon tubes

Materials

• All welded steel construction of 22 gauge type 430 stainless steel
• Brushed finish
• Push Button: ABS plastic

Product Dimensions

• 40.6cm W x 64.3cm H 13.9cm D (16″ W x 25.3″ H x 5.5″ D)
• Dimensions of the inner product chutes are as follows; Tampon slot: 5.5"W x 14.5"H x 0.9"D, Napkin Slot: 4.75"W x 15"H x 3.25"D
• Distance from bottom of the unit to the push buttons is 10.16cm (4")
• Distance between push buttons is 15.2cm (6")
• Height of push button is 7cm (2.75")

Product Weight

• 8.8kg (19.5 lbs)

Installation Guidelines

Using the appropriate tools for installation, drill mounting holes as required and attached the unit into desired surface. For barrier free mounting ensure that the coin mechanism handle does not exceed 48″ (121.9 cm) above floor level. Please note that it is recommended that all installations be conducted by a qualified tradesperson. Please read and follow installation guidelines provided with the products. Failure to do so may result in serious injury or death.

Maintenance

Normal preventative maintenance and cleaning will keep Frost products functioning properly and may extend normal product life. Products should be wiped down with a damp soft cloth periodically. Approved stainless steel cleaner may be used to clean scuffs or fingerprints on stainless surfaces. Do not use harsh detergents or chemical cleaners. For general dirt and blemishes on painted steel or plastic use warm water and mild soap, or a general mild cleaning solution. When using any type of cleaning solution, spray onto a discrete area to test before full usage. After the cleaning agent is applied, wipe off with a clean soft cloth or sponge. For stainless steel please do not spray with any product containing bleach, acids, or chlorides, which can be found in many cleaning products such as toilet bowl cleaners. Use of these cleaning solutions may cause discolouration and if used for prolonged periods of time they can eat away at points in the stainless steel. If discolouration occurs, the use of an approved stainless steel cleaner and a firmer scrub pad, such as a Scotch Brite Pad #7447, may remove the markings. Wipe away any debris from the area and gently rub with the pad. Then spray the area with a stainless steel cleaner/polish and rinse and dry. Always wipe with the grain direction for stainless steel products. If a cleaning agent has begun to eat away at the steel on a unit then the unit will likely need to be replaced. The stainless steel that Frost Products uses is of high quality and stainless steel is resistant to rust. However, discolouration that appears to be rust can be caused by cleaning solutions and soaps mentioned above. It is important to discontinue use of any cleaning agent or soap if discolouration begins to occur. Clean off the discolouration as quickly as possible to avoid any permanent damage to the unit. Maintenance staff should be taught how to recognize the signs that they are not using the appropriate cleaning products and how to correctly maintain stainless steel items.

Warranty

If any product or part proves to be defective within 12 months from date of shipment from the factory it will be repaired or replaced without any charge including freight costs when authorized. Costs resulting from the installation or removal of defective products are not covered under this warranty. Discolouration to stainless steel parts resulting from exposure to harsh environmental and / or chemicals are not considered to be defects in workmanship or material and are not covered under warranty.
