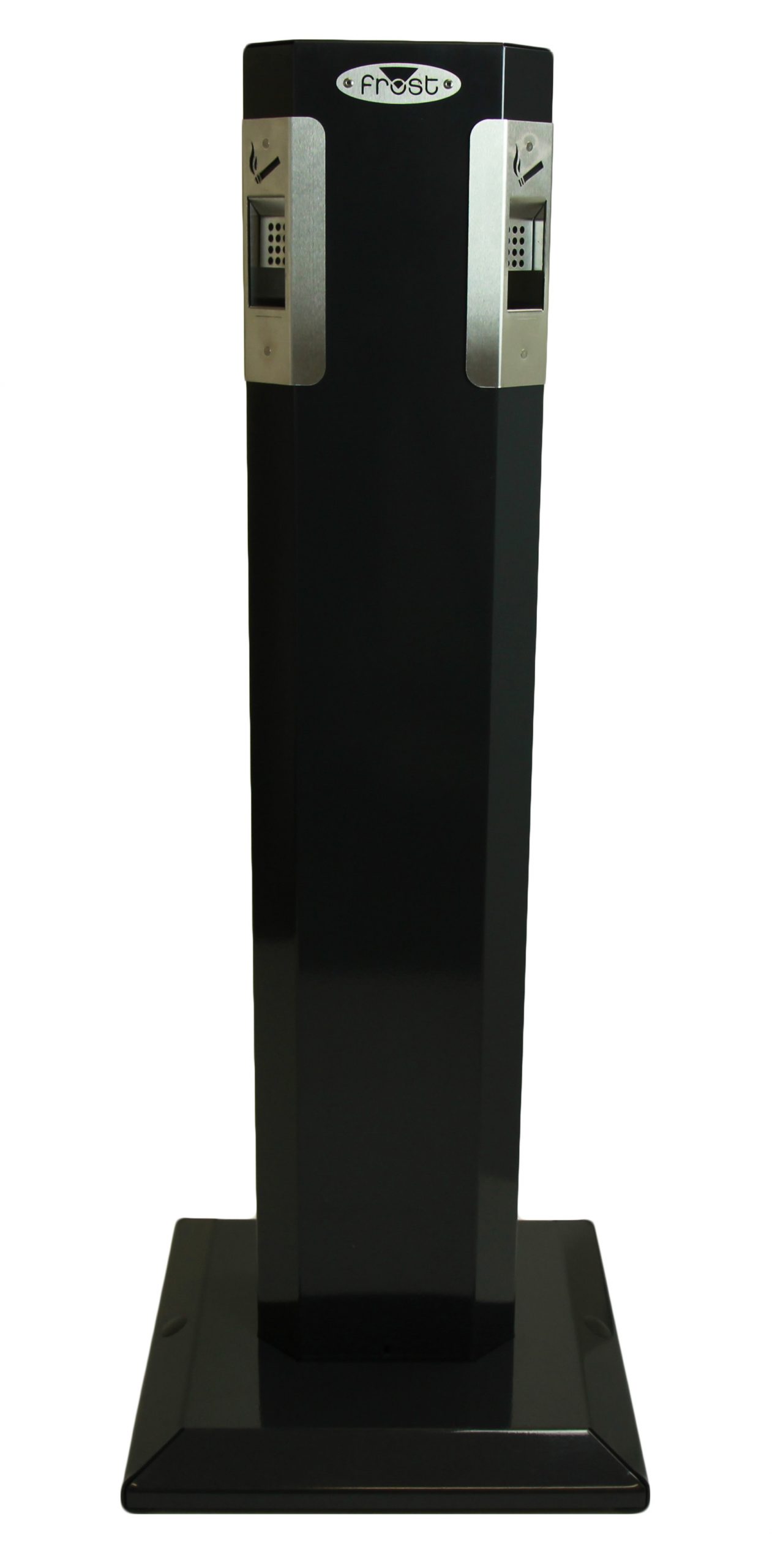

Heavy Duty Outdoor Pedestal Ashtray

Site Location

With its all steel construction of heavy HRS, and RAL super durable TGIC-free polyester powder coated rust proof paint, the pedestal ashtray is ideal for any site location. Perfect for use at office buildings, schools, retail outlets, parks, sports facilities, and other commercial properties requiring maximum durability and attractive looks.

Features

• Easy access large capacity cigarette receptacle
• Keyed tumbler lock to prevent theft
• Tested to survive harsh summer and winter weather
• Concealed mounting screw locations for anchors
• Attractive black and stainless steel finish

Capacity

• 1,500-1,800 cigarettes (6 litres, 1.6 US gal., 1.3 Imp gal.)

Materials

• Main Body: 18 gauge hot rolled steel
• Base: 12 gauge hot rolled steel
• Grill Inlets and Frame: 18 gauge type 304 stainless steel, brushed finish
• Complete Product: Body and base finished with RAL super durable TGIC-free polyester powder coating provides rust proof finish

Product Dimensions

• Pedestal: 21.6cm W x 105.4cm H x 13.3cm D (8.5” W x 41.5” H x 5.25” D)
• Base: 36.3cm W x 3.8cm H x 36.6cm D (14.3” W x 1.5” H x 14.4” D)
• Removable Receptacle: 15.2cm W x 47.6cm H x 8.6cm D (6” W x 18.75” H x 3.4” D)
• Hole Dimensions: 0.88cm (0.35”) for both hole diameters

Product Weight

• 15.0 kg (33 lbs)

Installation

Holes provided for anchor mounting. Easy installation into any location. Use Allan key (provided) and hardware to secure base to body. Allan bolts (4) and lock washers (4) included. Use base as a template to mark mounting hole locations. Ensure a minimum distance of 30.5cm (12”) when mounting close to a wall. Use hole plugs (2) provided to cover mounting hole locations.

Maintenance

Normal preventative maintenance and cleaning will keep Frost products functioning properly and may extend normal product life. Products should be wiped down with a damp soft cloth periodically. Approved stainless steel cleaner may be used to clean scuffs or fingerprints on stainless surfaces. Do not use harsh detergents or chemical cleaners. For general dirt and blemishes on painted steel or plastic use warm water and mild soap, or a general mild cleaning solution. When using any type of cleaning solution, spray onto a discrete area to test before full usage. After the cleaning agent is applied, wipe off with a clean soft cloth or sponge. For stainless steel please do not spray with any product containing bleach, acids, or chlorides, which can be found in many cleaning products such as toilet bowl cleaners. Use of these cleaning solutions may cause discolouration and if used for prolonged periods of time they can eat away at points in the stainless steel. If discolouration occurs, the use of an approved stainless steel cleaner and a firmer scrub pad, such as a Scotch Brite Pad #7447, may remove the markings. Wipe away any debris from the area and gently rub with the pad. Then spray the area with a stainless steel cleaner/polish and rinse and dry. Always wipe with the grain direction for stainless steel products. If a cleaning agent has begun to eat away at the steel on a unit then the unit will likely need to be replaced. For stainless steel soap dispensers please avoid use of ammonium-based soaps as these can also cause discolouration and/or damage to the dispensers. The stainless steel that Frost Products uses is of high quality and stainless steel is resistant to rust. However, discolouration that appears to be rust can be caused by cleaning solutions and soaps mentioned above. It is important to discontinue use of any cleaning agent or soap if discolouration begins to occur. Clean off the discolouration as quickly as possible to avoid any permanent damage to the unit. Maintenance staff should be taught how to recognize the signs that they are not using the appropriate cleaning products and how to correctly maintain stainless steel items. Warning: The Code 920 Smoking Station can only be used when fully assembled. Cigarettes can only be introduced through the front inlets. The unit must be locked at all times except for maintenance. The Code 920 smoking station is designed to receive cigarette butts ONLY, no other form of paper or material should be inserted. Flammable material should NEVER be introduced into the unit. Flammable materials may create a fire hazard. The Code 920 smoking station is for outdoor use only. The smoking station cannot be used indoors. When mounting or designing your smoking area, position the smoking station so that pedestrians or other forms of traffic will not bump into or knock over the smoking station. Do not position unit on or near flammable surfaces. Initially the unit must be inspected on a regular basis to determine the frequency of emptying and maintenance. Perform regular maintenance based on the frequency of use.

Warranty

If any product or part proves to be defective within 12 months from date of shipment from the factory it will be repaired or replaced without any charge including freight costs when authorized. Costs resulting from the installation or removal of defective products are not covered under this warranty. Discolouration to stainless steel parts resulting from exposure to harsh environmental and / or chemicals are not considered to be defects in workmanship or material and are not covered under warranty.
