Full Wall Mounted Shower Seat

Site Location

Frost’s 972 full wall mounted shower seat is extremely durable and practical. This unit has a barrier free design and can withstand up to 450 lbs when properly installed. Typically, these units are used in schools/universities, hospitals, and retirement and nursing home communities. The durable construction, large weight capacity, and barrier free design make this unit a popular hygienic solution.

Features

• Compact flip up shower seat retracts out of way when not in use
• White phenolic seat
• Easy to clean and maintain
• Welded construction, features full 360 degree welds on all joints

Capacity

• The folding shower seat is be fabricated of adequate strength to support a load of 450 pounds (204.1 kg) when properly installed. Unit shall satisfy ADA Accessibility Guidelines when mounted properly. We suggest installation by a qualified tradesperson.

Materials

• Unit frame is fabricated from 1″ O.D. 18 gauge brushed finish type 304 stainless steel
• Support and flanges are also stainless steel with brushed finish
• One piece phenolic top, 5/16″ (8mm) thick

Product Dimensions

• Up: 45.7cm W x 61.5cm H x 12.9cm D (18″ W x 24.2″ H x 5.1″ D)
• Down: 45.7cm W x 33.0cm H x 41.1cm D (18″ W x 13″ H x 16.2″ D)

Product Weight

• 4.5kg (10 lbs)

Installation Guidelines

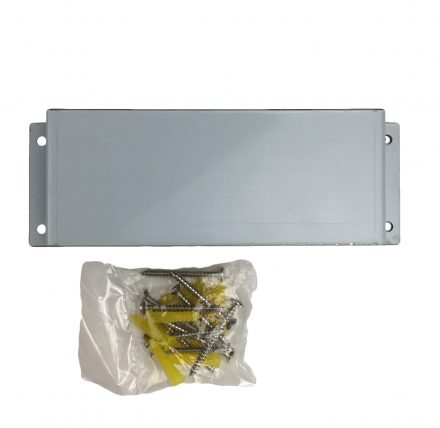

This unit is surface mounted. Installer/construction contractor must provide concealed anchor plate or blocking as specified in construction documents or as required by local building codes prior to wall finishing. Fasten unit flanges and guide bracket to concealed anchor or blocking plate with appropriate hardware. Note that concealed mounting plates or anchors and hardware are not supplied with this product and must be specified separately. The supporting wall must be adequately reinforced to carry the rated load for the products lifetime. Ensure that mounting configuration complies with local building codes. Mounting hole locations are for reference when providing in wall support. Final holes should be drilled using shower seat as a template. All shower seats must be installed by qualified tradespersons. Installers must consult and comply with local building codes. Mounting hardware and other systems to be determined by contractor and installer pending specific structure, design, and conditions. All installations must be fully inspected and approved by property owners and maintenance personnel prior to seat being put into use. Failure to comply with proper installation procedure will void warranty and may result in malfunctioning or injury.

Maintenance

Normal preventative maintenance and cleaning will keep Frost products functioning properly and may extend normal product life. Products should be wiped down with a damp soft cloth periodically. Approved stainless steel cleaner may be used to clean scuffs or fingerprints on stainless surfaces. Do not use harsh detergents or chemical cleaners. For stainless steel please do not spray with any product containing bleach, acids, or chlorides, which can be found in many cleaning products such as toilet bowl cleaners. Use of these cleaning solutions may cause discolouration and if used for prolonged periods of time they can eat away at points in the stainless steel. If discolouration occurs, the use of an approved stainless steel cleaner and a firmer scrub pad, such as a Scotch Brite Pad #7447, may remove the markings. Wipe away any debris from the area and gently rub with the pad. Then spray the area with a stainless steel cleaner/polish and rinse and dry. Always wipe with the grain direction for stainless steel products. If a cleaning agent has begun to eat away at the steel on a unit then the unit will likely need to be replaced. The stainless steel that Frost Products uses is of high quality and stainless steel is resistant to rust. However, discolouration that appears to be rust can be caused by cleaning solutions and soaps mentioned above. It is important to discontinue use of any cleaning agent or soap if discolouration begins to occur. Clean off the discolouration as quickly as possible to avoid any permanent damage to the unit. Maintenance staff should be taught how to recognize the signs that they are not using the appropriate cleaning products and how to correctly maintain stainless steel items.

Warranty

If any product or part proves to be defective within 12 months from date of shipment from the factory it will be repaired or replaced without any charge including freight costs when authorized. Costs resulting from the installation or removal of defective products are not covered under this warranty. Discolouration to stainless steel parts resulting from exposure to harsh environmental and / or chemicals are not considered to be defects in workmanship or material and are not covered under warranty.
