Control Roll Push Bar Universal Paper Towel Dispenser

Site Location

Frost’s 109-50S control roll universal paper towel dispenser offers a quality and reliable product in a durable all steel body. Typically, this product is used in Schools/Universities, Offices, Restaurants, Service Stations, and Industrial Settings where a durable product is required. The product’s ease of use, robust design, and professional appearance make it a popular choice.

Features

• Controlled and uniform paper delivery
• Comes standard with keyed tumbler lock to reduce pilferage
• Front loading for easy service and maintenance
• All Canadian steel construction

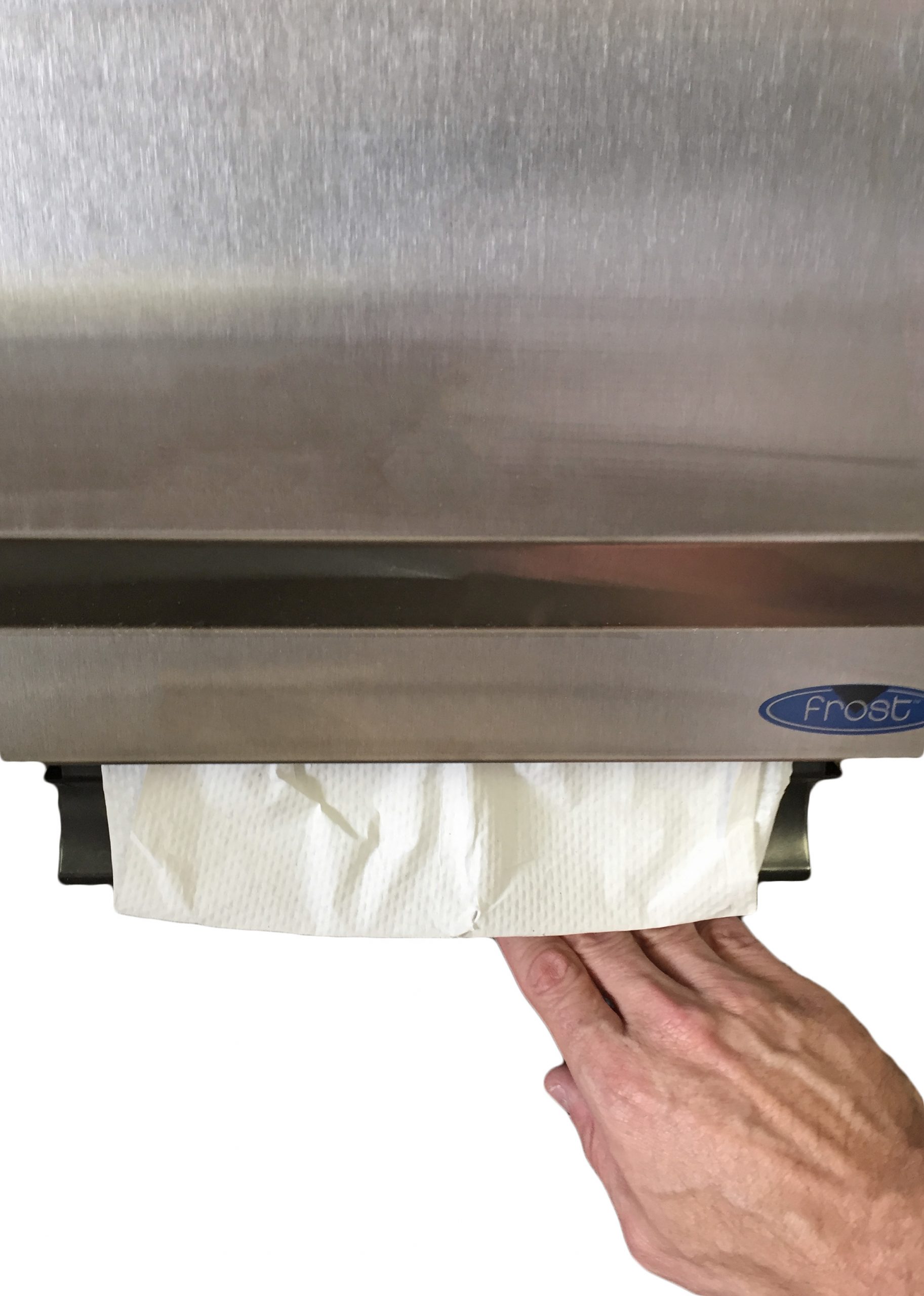

• Push bar operates with less than 5lbs (22.2N) of force

Dispensing

Frost code 109-50S is designed to dispense Jumbo 8″ diameter (4″ reserve roll) x 8″ wide roll towels, core size of 1 ⅜″ and greater. The units are universal; meaning, the unit is non-proprietary and dispenses paper from standard commercial paper producers. This allows the end user to avoid getting locked into paper supply contracts and should save them money on their janitorial supplies. The unit is manually operated and can be refilled by unlocking the dispenser from the top. The lid will then swing down and new paper can be inserted.

Capacity

• Frost 109-50S universal paper towel dispenser will hold one jumbo 8” x 8” paper towel roll, as well as, a 4” reserve roll.

Materials

• Front: one piece 22 gauge type 304 stainless steel with no.4 brushed finish
• Back: 22 gauge steel finished in light grey epoxy powder coated paint

Product Dimensions

• 40.1cm H x 27.4cm W x 22.2cm D (15.8” H x 10.8” W x 8.75” D)

Product Weight

• 2.9 kg (6.4 lbs)

Installation Guidelines

For unrestricted access, bottom of unit to floor must be between 38.1cm and 121.9cm (15” to 48”). Unit comes with four standard Philips style screws and four anchors. Mark mounting holes with template provided against the mounting surface using a pencil and level. Use a screw driver or power drill to drill screws in the desired mounting surface and attach the dispenser.

Maintenance

Normal preventative maintenance and cleaning will keep Frost products functioning properly and may extend normal product life. Products should be wiped down with a damp soft cloth periodically. Approved stainless steel cleaner may be used to clean scuffs or fingerprints on stainless surfaces. Do not use harsh detergents or chemical cleaners. For stainless steel please do not spray with any product containing bleach, acids, or chlorides, which can be found in many cleaning products such as toilet bowl cleaners. Use of these cleaning solutions may cause discolouration and if used for prolonged periods of time they can eat away at points in the stainless steel. If discolouration occurs, the use of an approved stainless steel cleaner and a firmer scrub pad, such as a Scotch Brite Pad #7447, may remove the markings. Wipe away any debris from the area and gently rub with the pad. Then spray the area with a stainless steel cleaner/polish and rinse and dry. Always wipe with the grain direction for stainless steel products. If a cleaning agent has begun to eat away at the steel on a unit then the unit will likely need to be replaced. The stainless steel that Frost Products uses is of high quality and stainless steel is resistant to rust. However, discolouration that appears to be rust can be caused by cleaning solutions and soaps mentioned above. It is important to discontinue use of any cleaning agent or soap if discolouration begins to occur. Clean off the discolouration as quickly as possible to avoid any permanent damage to the unit. Maintenance staff should be taught how to recognize the signs that they are not using the appropriate cleaning products and how to correctly maintain stainless steel items.

Warranty

If any product or part proves to be defective within 12 months from date of shipment from the factory it will be repaired or replaced without any charge including freight costs when authorized. Costs resulting from the installation or removal of defective products are not covered under this warranty. Discolouration to stainless steel parts resulting from exposure to harsh environmental and / or chemicals are not considered to be defects in workmanship or material and are not covered under warranty.
