Automatic Liquid Soap & Sanitizer Dispenser

Site Location

Frost’s 714-C automatic liquid soap and sanitizer dispenser is practical, economical, and durable. This unit’s hands-free operation makes it a practical solution for high traffic areas requiring hands-free use. Additionally, the 714-C can accommodate gel sanitizer or liquid alcohol solutions. Typically, these products are used in healthcare, schools, malls, restaurants, office buildings, gyms and recreational facilities, and other commercial properties. For locations requiring a cost efficient automatic liquid soap solution, this dispenser is an ideal choice.

Features

• The high quality ABS provides a durable and inexpensive option for the end user
• Dispenses universal non-proprietary soap and sanitizer from standard commercial suppliers
• Can accommodate liquid and lotion soaps and sanitizers and can be easily converted to hold different forms of soap/sanitizer
• Refillable soap reservoir allows for easy cleaning and maintenance while helping the user to save costs on bulk soap and sanitizer

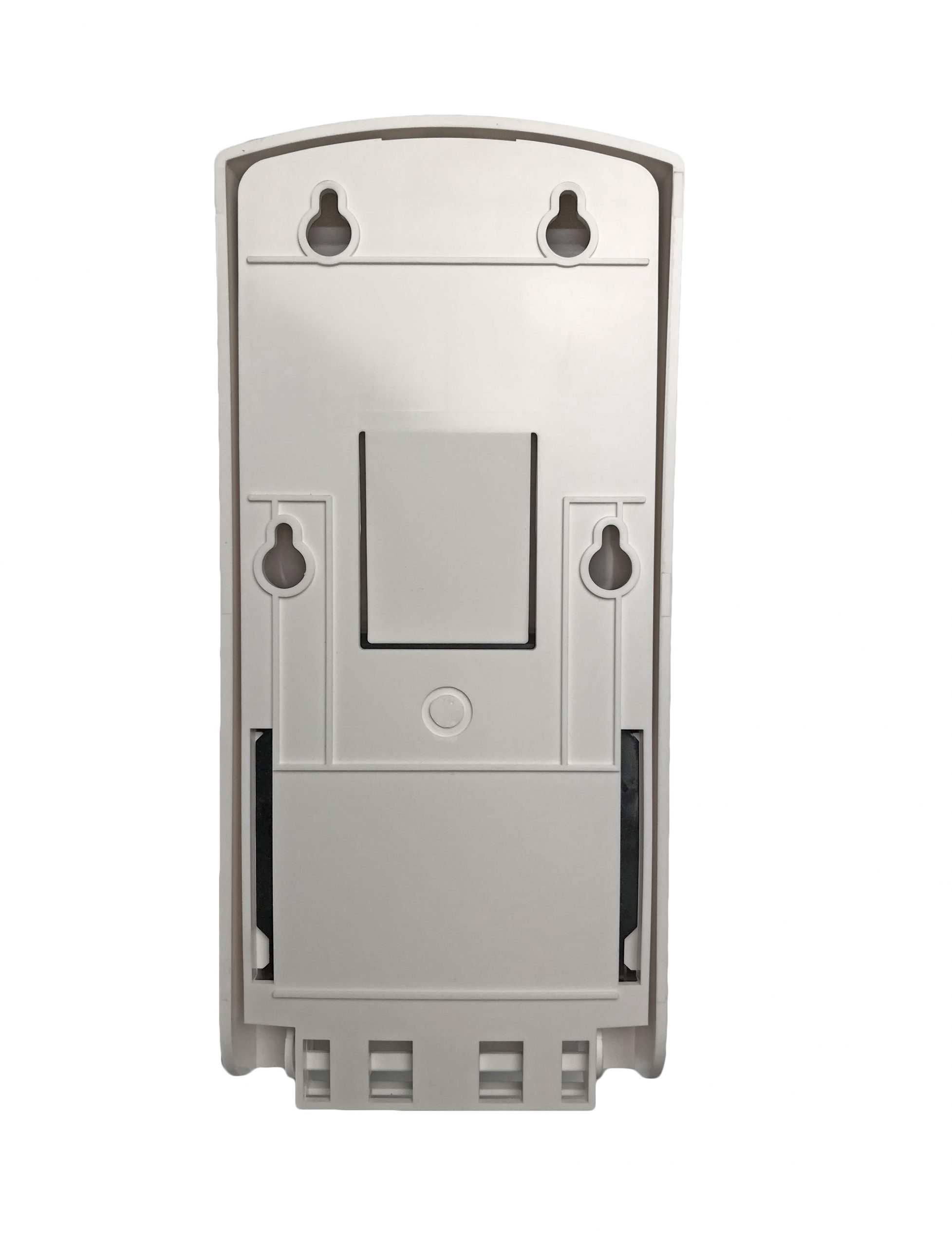

• Completely concealed wall mounting with no visible mounting screws, mounting screws provided
• The unit operates with alkaline batteries (1.5V), AA size, quantity of 4
• Soap pump can be changed to foaming with purchase of new part (please see replacement part section below)

Dispensing

Frost’s 714-C dispenses soap automatically by placing your hands 1.2cm (0.79”) to 12 cm (4.72”) from the sensor. This product is also universal; meaning, the unit is non-proprietary and dispenses soap and sanitizer from standard commercial suppliers. This allows the end user to avoid getting locked into supply contracts and should save them money on their janitorial supplies. To refill this product, open the housing with the key provided, remove the soap tank prior to filling to avoid spilling into the electronic box, and pour your soap/sanitizer into the soap tank once removed. Once the soap tank has been filled reinstall it into the base plate. When dispensing liquid soap/sanitizer, the dispensing volume is 0.8-1.1ml (0.027-0.037 fl oz.). The soap pump has an estimated life of 100,000 cycles, and has an estimated battery life of 25,000 cycles or 1-year. A flashing blue light on the unit will indicate when the battery is low. Ensure the soap/sanitizer being used is compatible with the pump as the wrong type of soap may damage the soap pump.

Capacity

• The bulk filled reservoir holds 500ml (16.9 fl oz.) of liquid soap

Materials

• Robust high quality ABS in white

Product Dimensions

• 10.4cm W x 23.1cm H x 9.5cm D (4.1″ W x 9.1″ H x 3.75″ D)

Product Weight

• 0.7kg (1.54 lbs)

Installation Guidelines

For unrestricted access, bottom of the unit to floor must be between 38.1cm to 121.9cm (15″ to 48″). This dispenser comes with standard combination screws and plugs. Mark mounting holes against the mounting surface using a pencil and level. Use a screwdriver or power drill to drill screws and back plate in the desired mounting surface and attach the dispenser. Alternately use adhesive pads on smooth dry surfaces (note adhesive pads not provided). Please note that it is recommended that all installations be conducted by a qualified tradesperson. Failure to do so may result in serious injury. Please read and follow any additional installation guidelines provided with the products.

Maintenance

Normal preventative maintenance and cleaning will keep Frost products functioning properly and may extend normal product life. Products should be wiped down with a damp soft cloth periodically. Do not use harsh detergents or chemical cleaners. For general dirt and blemishes on painted steel or plastic use warm water and mild soap, or a general mild cleaning solution. When using any type of cleaning solution, spray onto a discrete area to test before full usage. After the cleaning agent is applied, wipe off with a clean soft cloth or sponge. It is recommended that soap tanks be properly cleaned prior to each refill as deposits of old soap may lead to malfunction of the soap pump. It is also recommended that users avoid harsh chemical cleaners when cleaning the outside of the unit.

Warranty

If any product or part proves to be defective within 12 months from date of shipment from the factory it will be repaired or replaced without any charge including freight costs when authorized. Costs resulting from the installation or removal of defective products are not covered under this warranty.
