Frost’s 714-P automatic liquid soap and sanitizer dispenser is practical, economical, and durable. This unit’s hands-free operation makes it a practical solution for high traffic areas requiring hands-free use. Additionally, the 714-P can accommodate gel sanitizer or liquid alcohol solutions. Typically, these products are used in healthcare, schools, malls, restaurants, office buildings, gyms and recreational facilities, and other commercial properties. For locations requiring a cost efficient automatic liquid soap solution, this dispenser is an ideal choice.

Features

  • The high quality ABS provides a durable and inexpensive option for the end user
  • Dispenses universal non-proprietary soap and sanitizer from standard commercial suppliers
  • Can accommodate liquid and lotion soaps and sanitizers and can be easily converted to hold different forms of soap/sanitizer
  • Refillable soap reservoir allows for easy cleaning and maintenance while helping the user to save costs on bulk soap and sanitizer
  • Completely concealed wall mounting with no visible mounting screws, mounting screws provided
  • The unit operates with alkaline batteries (1.5V), AA size, quantity of 4
  • Soap pump can be changed to foaming with purchase of new part

Dispensing

Frost’s 714-P dispenses soap automatically by placing your hands 1.2cm (0.79”) to 12 cm (4.72”) from the sensor. This product is also universal; meaning, the unit is non-proprietary and dispenses soap and sanitizer from standard commercial suppliers. This allows the end user to avoid getting locked into supply contracts and should save them money on their janitorial supplies. To refill this product, open the housing with the key provided, remove the soap tank prior to filling to avoid spilling into the electronic box, and pour your soap/sanitizer into the soap tank once removed. Once the soap tank has been filled reinstall it into the base plate. When dispensing liquid soap/sanitizer, the dispensing volume is 0.8-1.1ml (0.027-0.037 fl oz.). The soap pump has an estimated life of 100,000 cycles, and has an estimated battery life of 25,000 cycles or 1-year. A flashing blue light on the unit will indicate when the battery is low. Ensure the soap/sanitizer being used is compatible with the pump as the wrong type of soap may damage the soap pump.

Capacity

  • This dispenser has a 1,200 ml (40.6 US fl oz) capacity

Materials

  • Robust high quality ABS in white

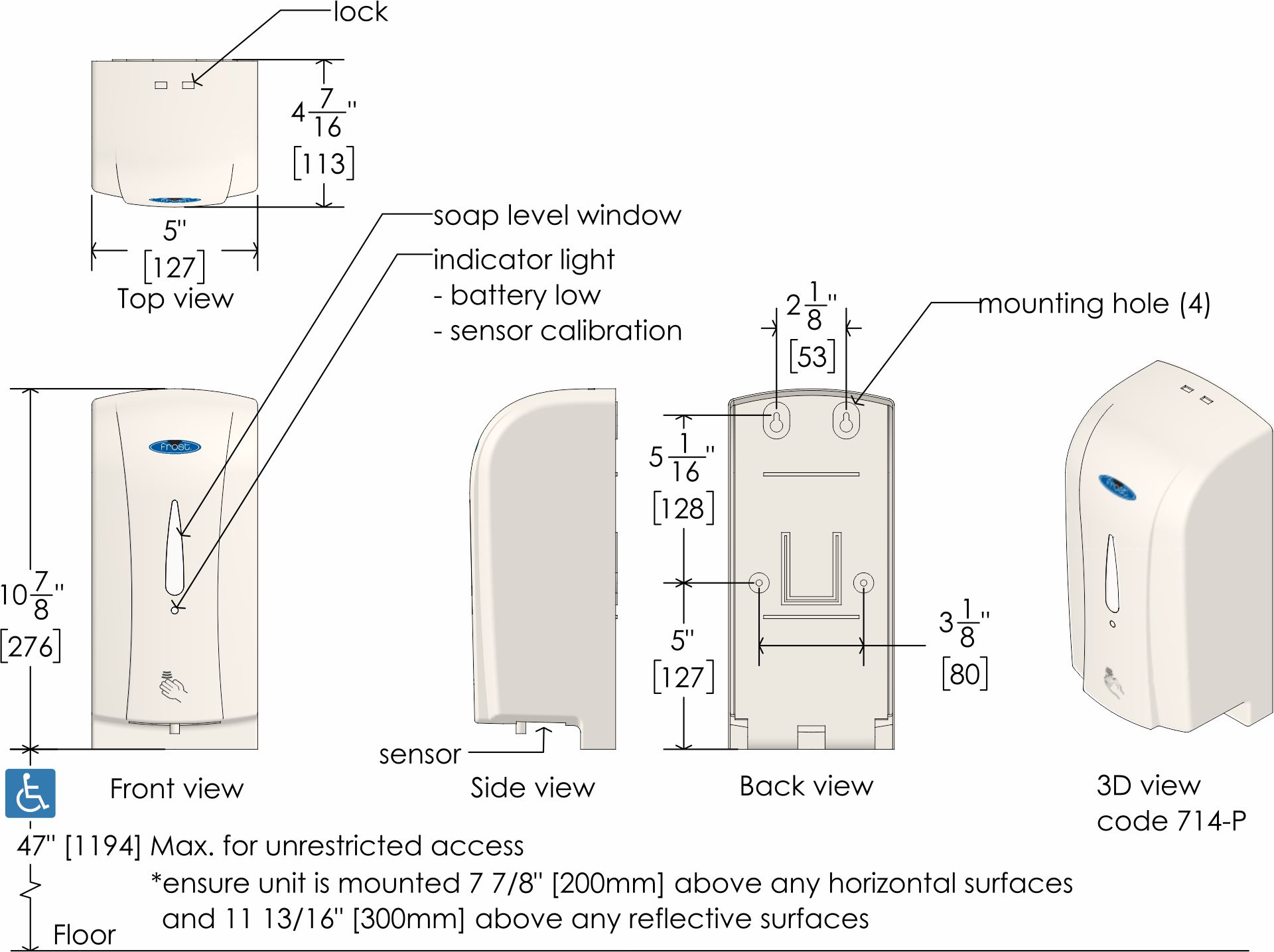

Product Dimensions

  • 27.7cm H x 12.7cm W x 11.2cm D (10.9” H x 5.0” W x 4.4” D)

Product Weight

  • 0.7 kg (1.5 lbs)

Installation Guidelines

For unrestricted access, bottom of unit to floor should not exceed 111.7 cm (44”). Ensure touchless unit is mounted 20 cm (7.9”) above any horizontal surface (30 cm / 11.8” for stainless steel). Prior to mounting using self adhesive: clean glass surface, mark clearly with removable marker or masking tape the exact location and plumb line for unit. The foam tape backing on the dispenser does not allow for repositioning of unit if it is mounted crooked or askew. Allow tape to set ten hours prior to filling dispenser with soap and loading batteries.

Maintenance

Normal preventative maintenance and cleaning will keep Frost products functioning properly and may extend normal product life. Products should be wiped down with a damp soft cloth periodically. Do not use harsh detergents or chemical cleaners. For general dirt and blemishes on painted steel or plastic use warm water and mild soap, or a general mild cleaning solution. When using any type of cleaning solution, spray onto a discrete area to test before full usage. After the cleaning agent is applied, wipe off with a clean soft cloth or sponge. It is recommended that soap tanks be properly cleaned prior to each refill as deposits of old soap may lead to malfunction of the soap pump. It is also recommended that users avoid harsh chemical cleaners when cleaning the outside of the unit.

Warranty

If any product or part proves to be defective within 12 months from date of shipment from the factory it will be repaired or replaced without any charge including freight costs when authorized. Costs resulting from the installation or removal of defective products are not covered under this warranty. Discolouration to stainless steel parts resulting from exposure to harsh environmental and / or chemicals are not considered to be defects in workmanship or material and are not covered under warranty.

U134EA 0361 ASI0361

Additional Info and Downloads

REPLACEMENT PARTS
Replacement Globe for 714-P CDN $50.00
Key for soap dispenser 714-P and 714-C CDN $12.00
Rubber Tube Assembly for Old Style 714 CDN $20.00
Replacement Globe for 714 Old Style CDN $50.00
Foam Valve CDN $35.00
Liquid Valve CDN $35.00
